A belt-driven electric compressor on a vertical 100L tank - the upright layout takes less floor space, which is the difference between fitting a workshop compressor in a single garage and not.
The pump is a cast iron parallel twin-cylinder with aluminium pistons, running at 950 rpm on a 0.75 duty cycle. An aluminium after-cooler, fed by a fan built into the drive pulley, drops the output air temperature so less moisture reaches your hose and tools.

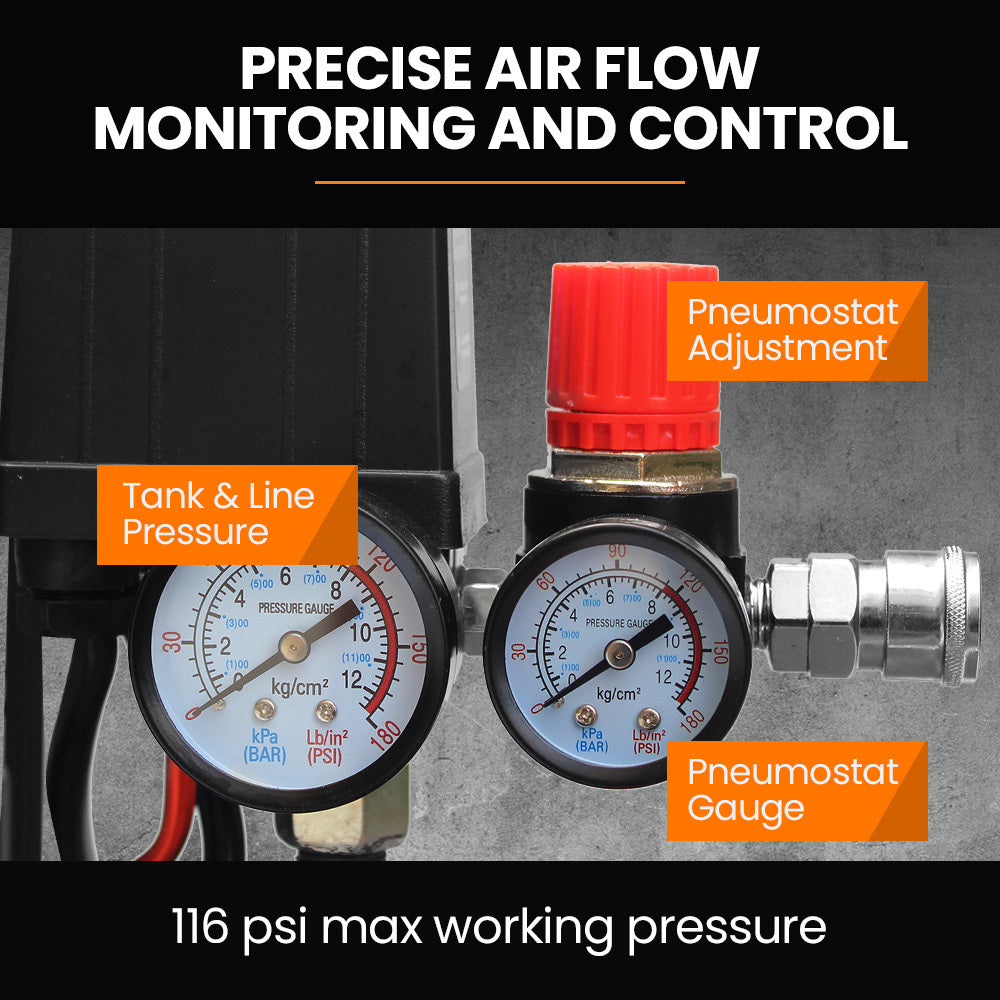

Dual gauges let you read tank, line and pneumostat pressure separately, and two Nitto outlets run two tools at once.
Features

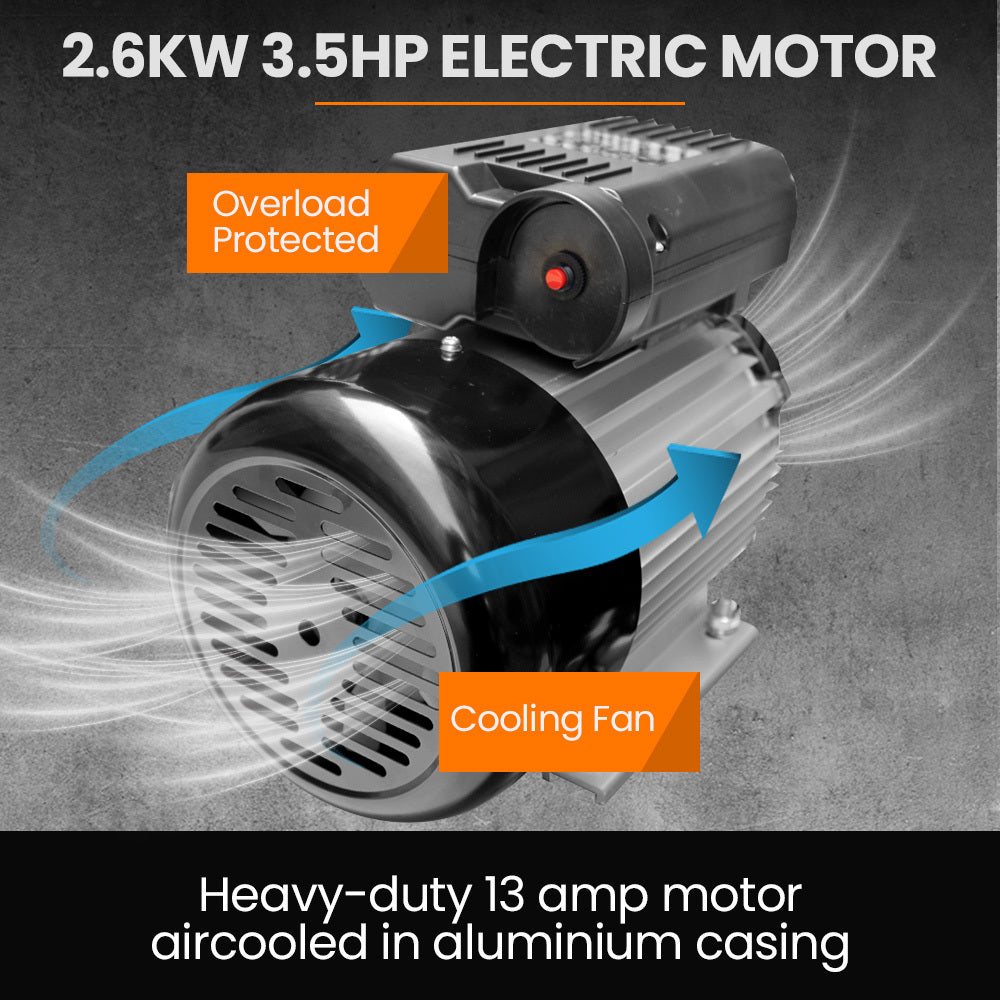

- 3.5HP belt-driven motor with automatic pressure control switch
- Overload protection circuit breaker and emergency shut-down plunger switch

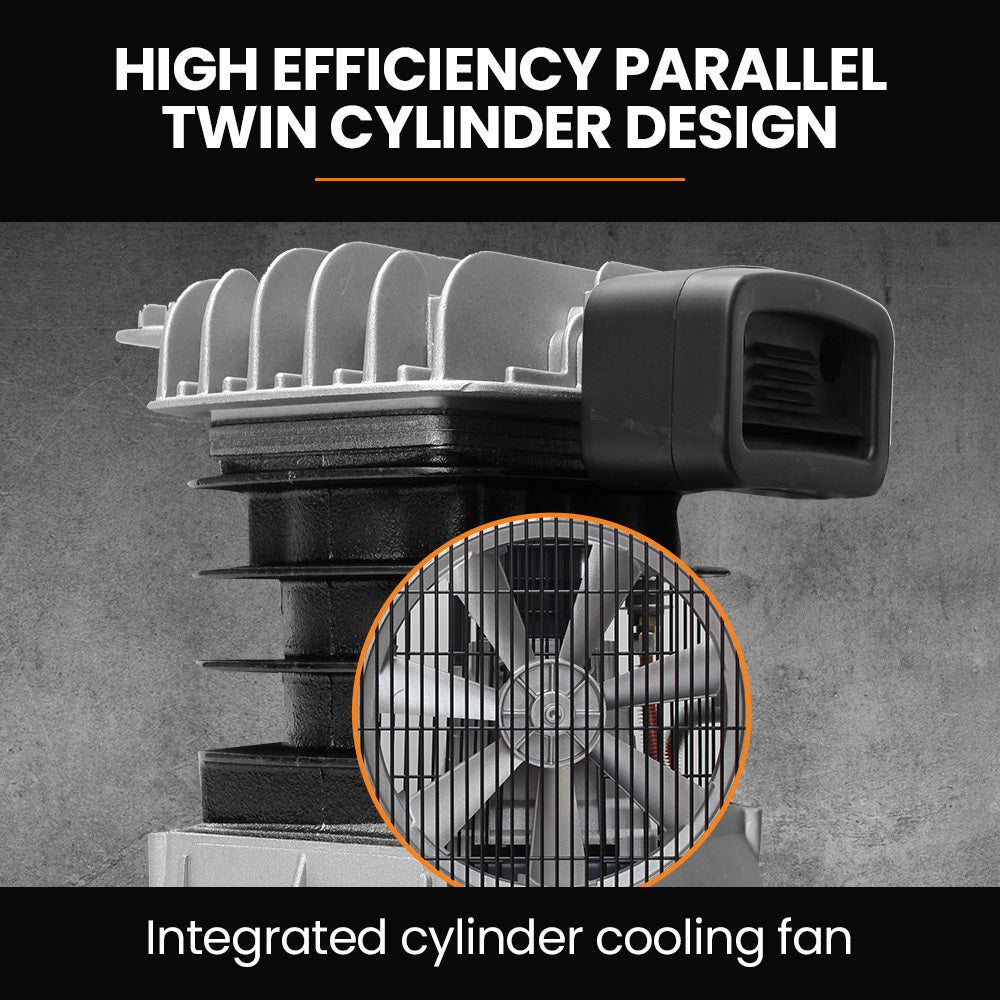

- Cast iron parallel twin-cylinder pump with aluminium pistons

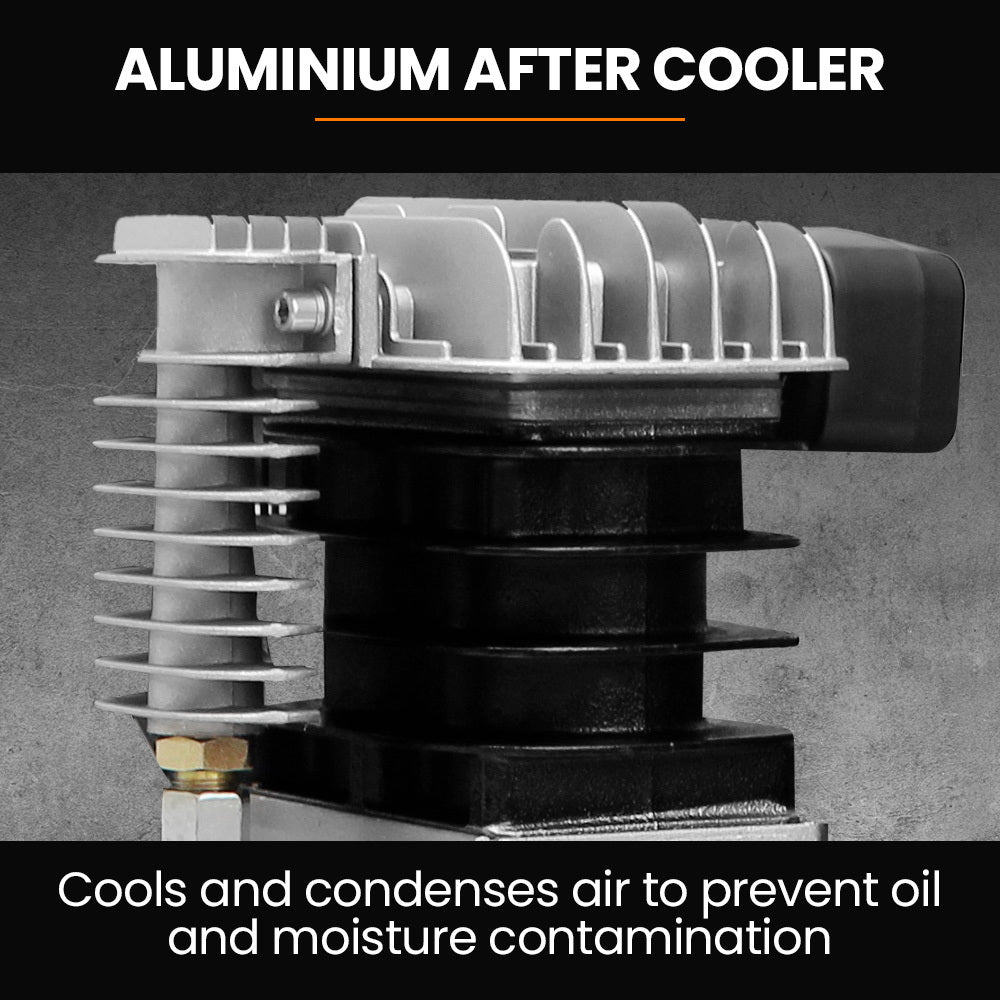

- Aluminium after-cooler for lower output air temperature

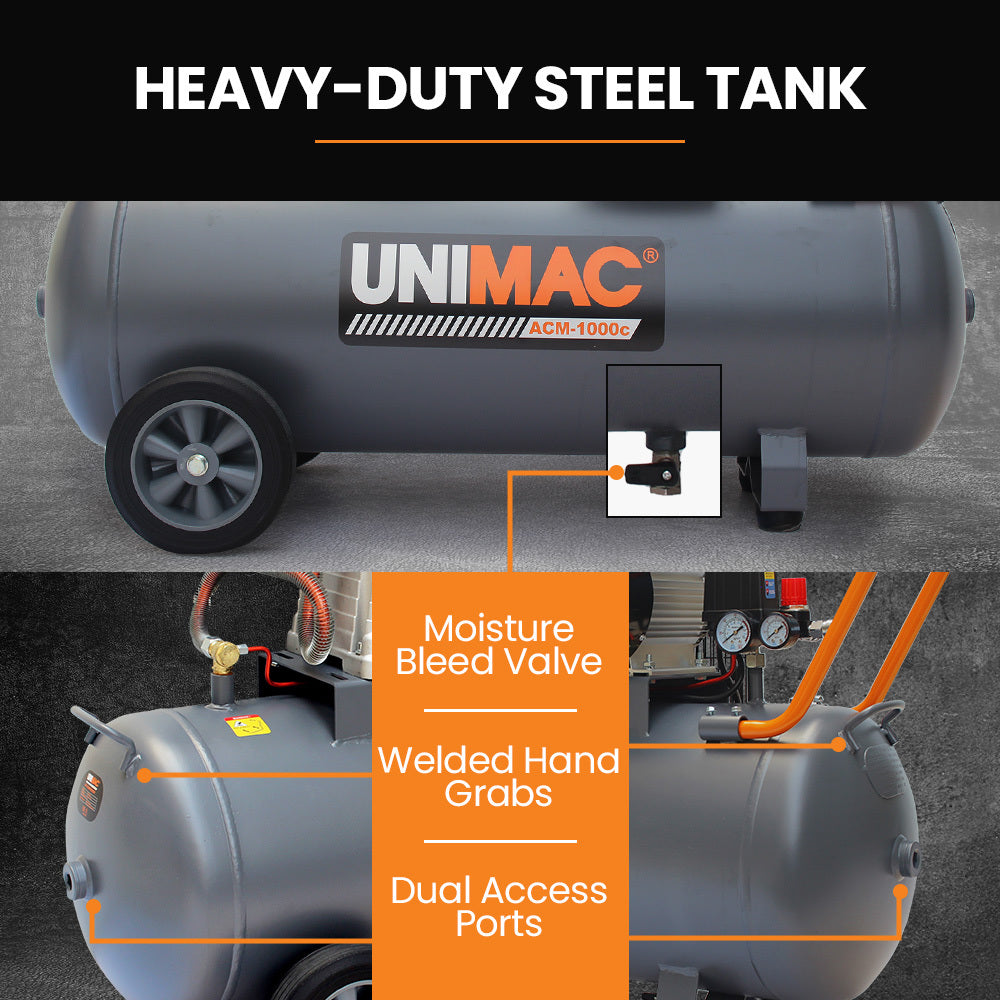

- Vertical 100L space-saving steel tank with welded inlet, outlet and bleed ports
- Quarter-turn moisture bleed valve

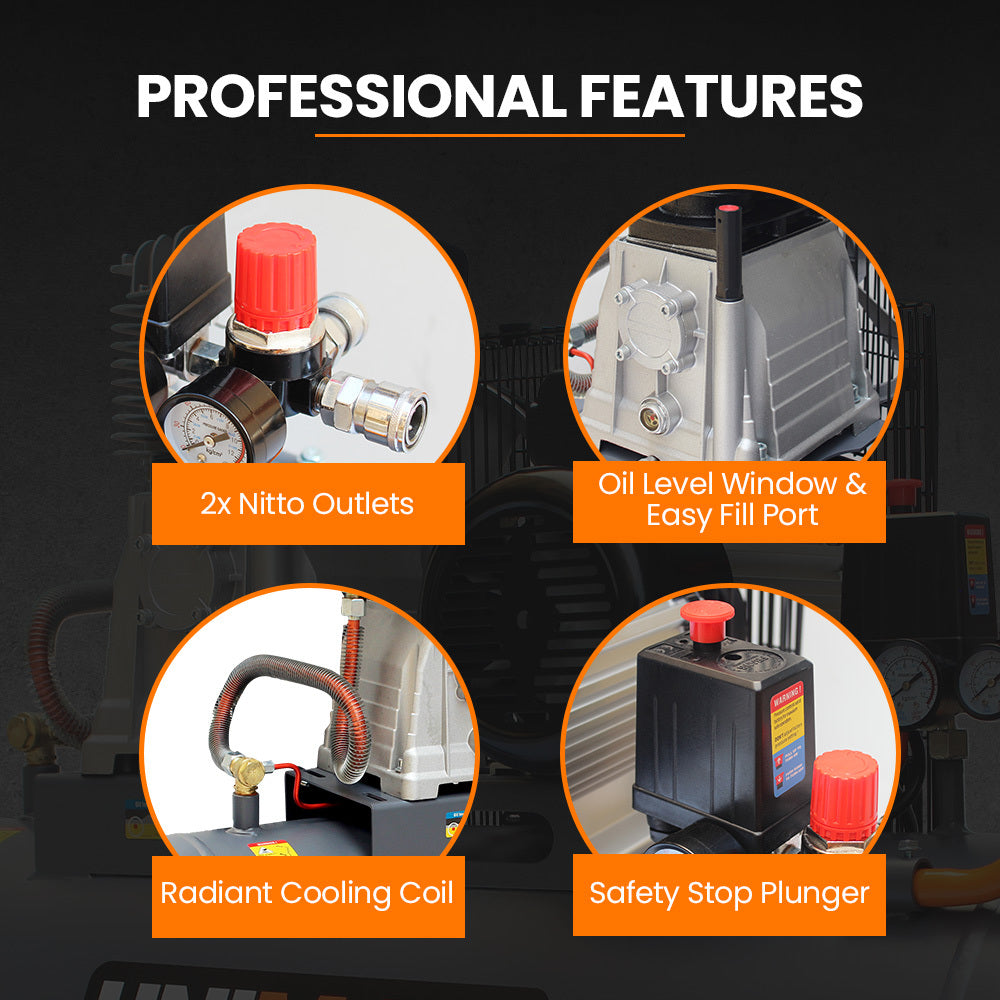

- Two Nitto air outlets
- Separate tank and line gauges
- Oil lubricated

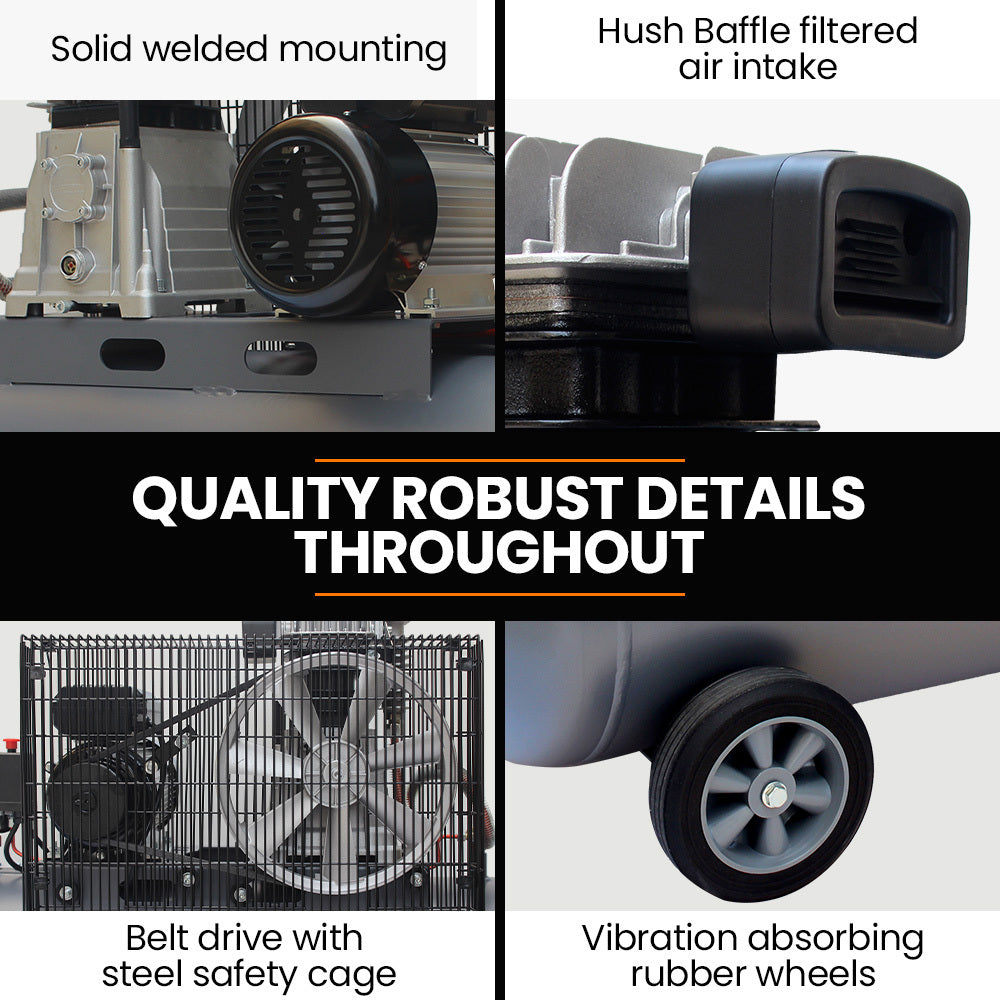

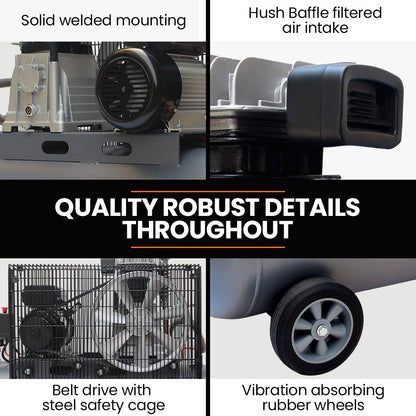

- Rubber tyres, removable handle and vibration-absorbing rubber feet
- Operates at 69 dBa (Lpa)
Specifications
- Brand: Unimac
- Model: ACM-1000c
- Receiver capacity: 100L
- Input voltage: 240V
- Motor input: 230-240V 50Hz
- Air displacement: 370L/min (13.0 CFM)
- Free air delivery: 260L/min at 7 bar (9.2 CFM)
- Working pressure: 116PSI (8 bar)
- Restart pressure: 86PSI (6 bar)
- Pump speed: 950 rpm
- Duty cycle: 0.75
- Power rating: 2.6kW
- Power plug: 15A
- IP rating: IP20
- Noise level: 69 dBa (Lpa)

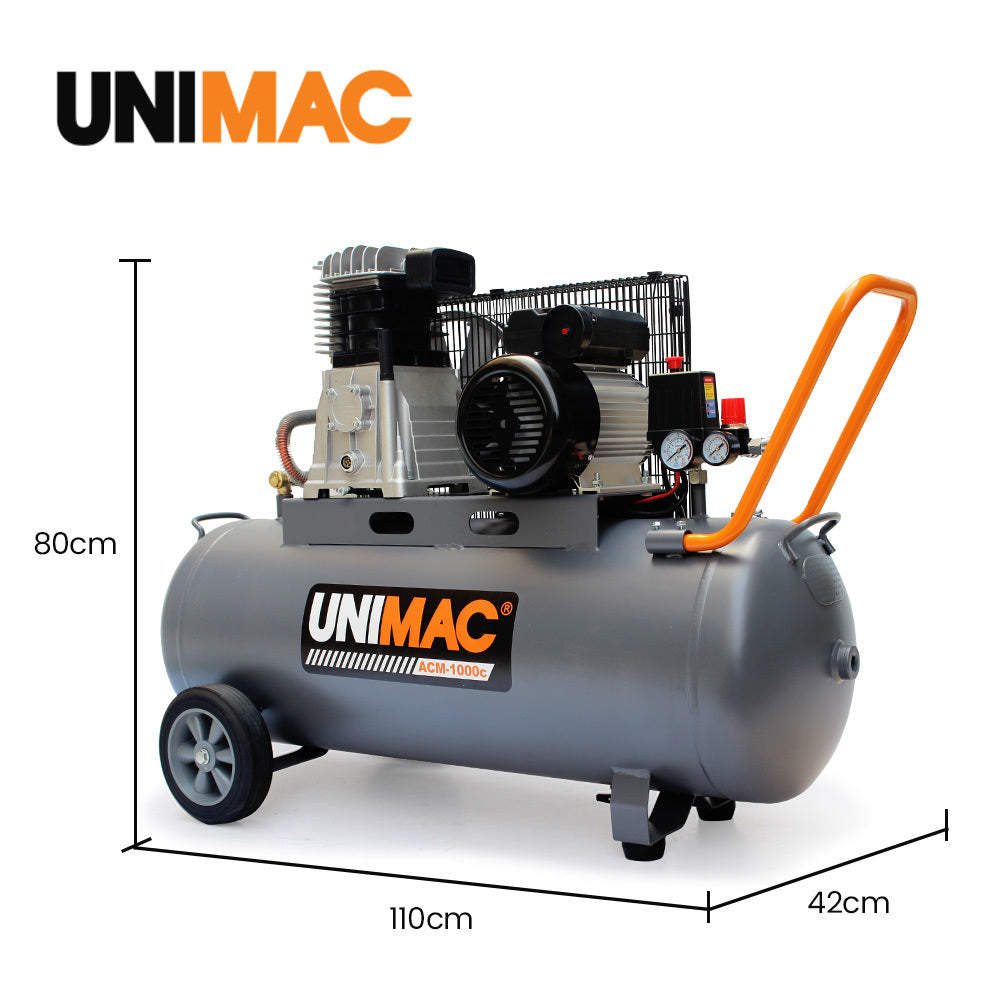

- Dimensions: 42cm x 110cm x 80cm (W x L x H)
- Weight: 69kg
In the box
- 1 x Unimac ACM-1000c air compressor
- User manual accessible online
