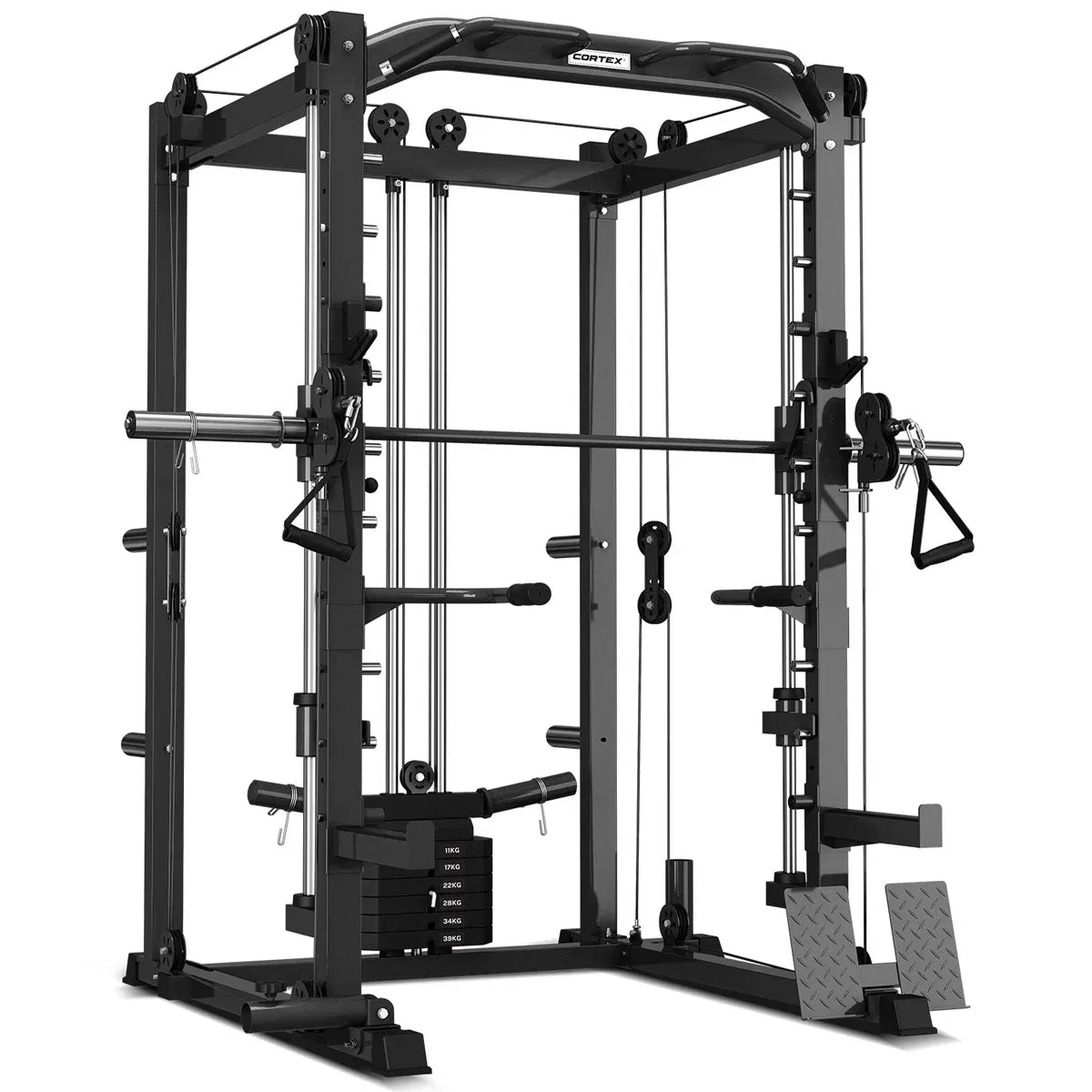

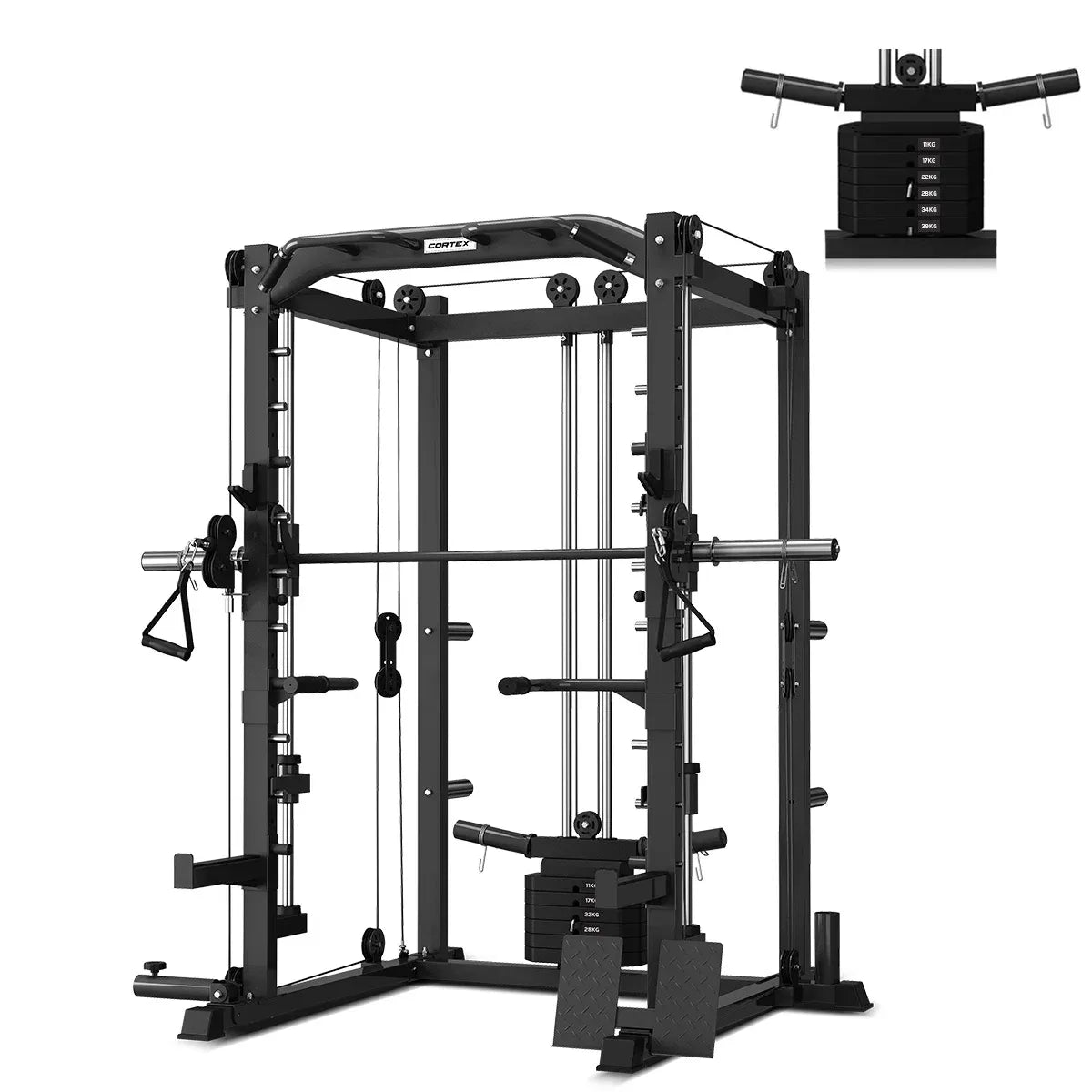

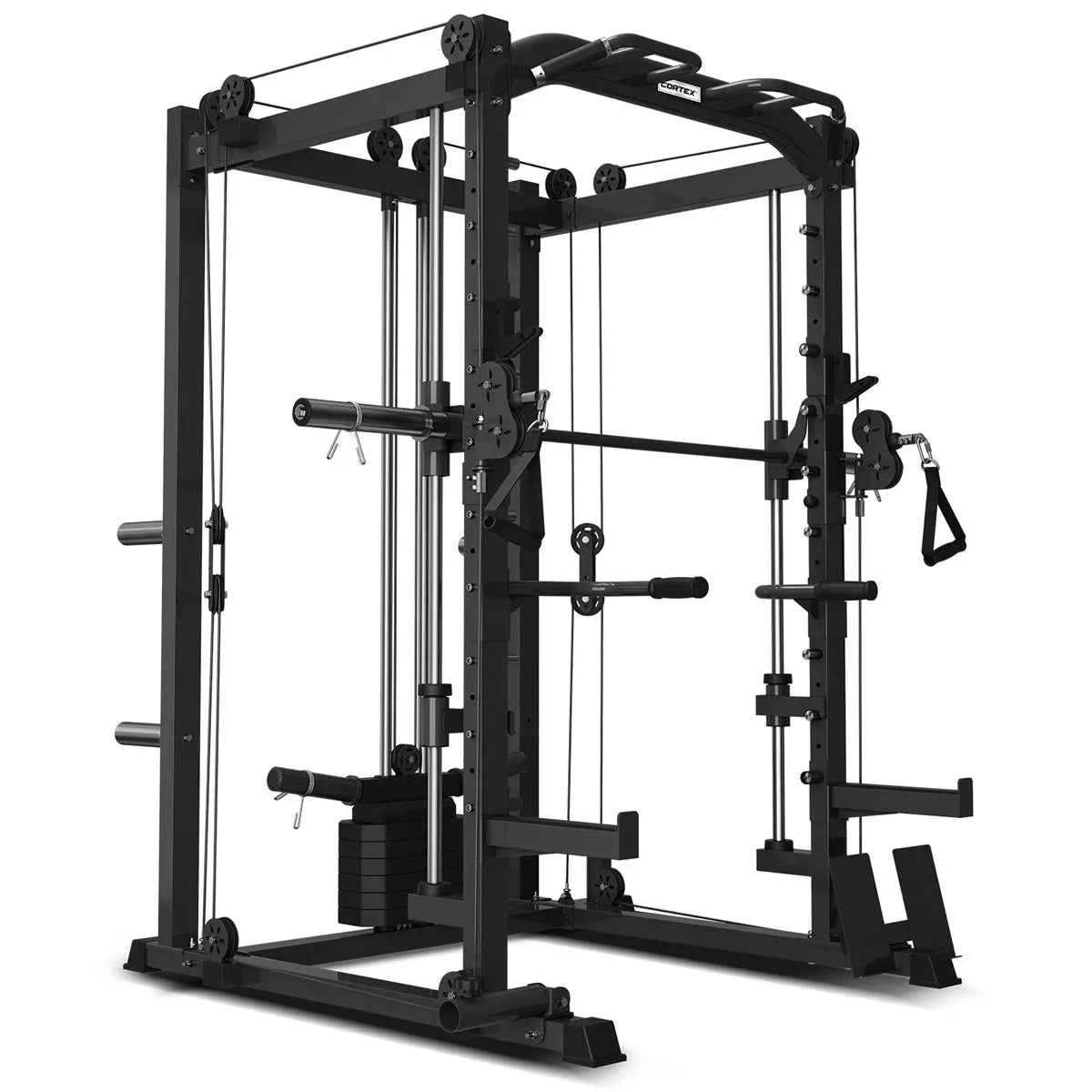

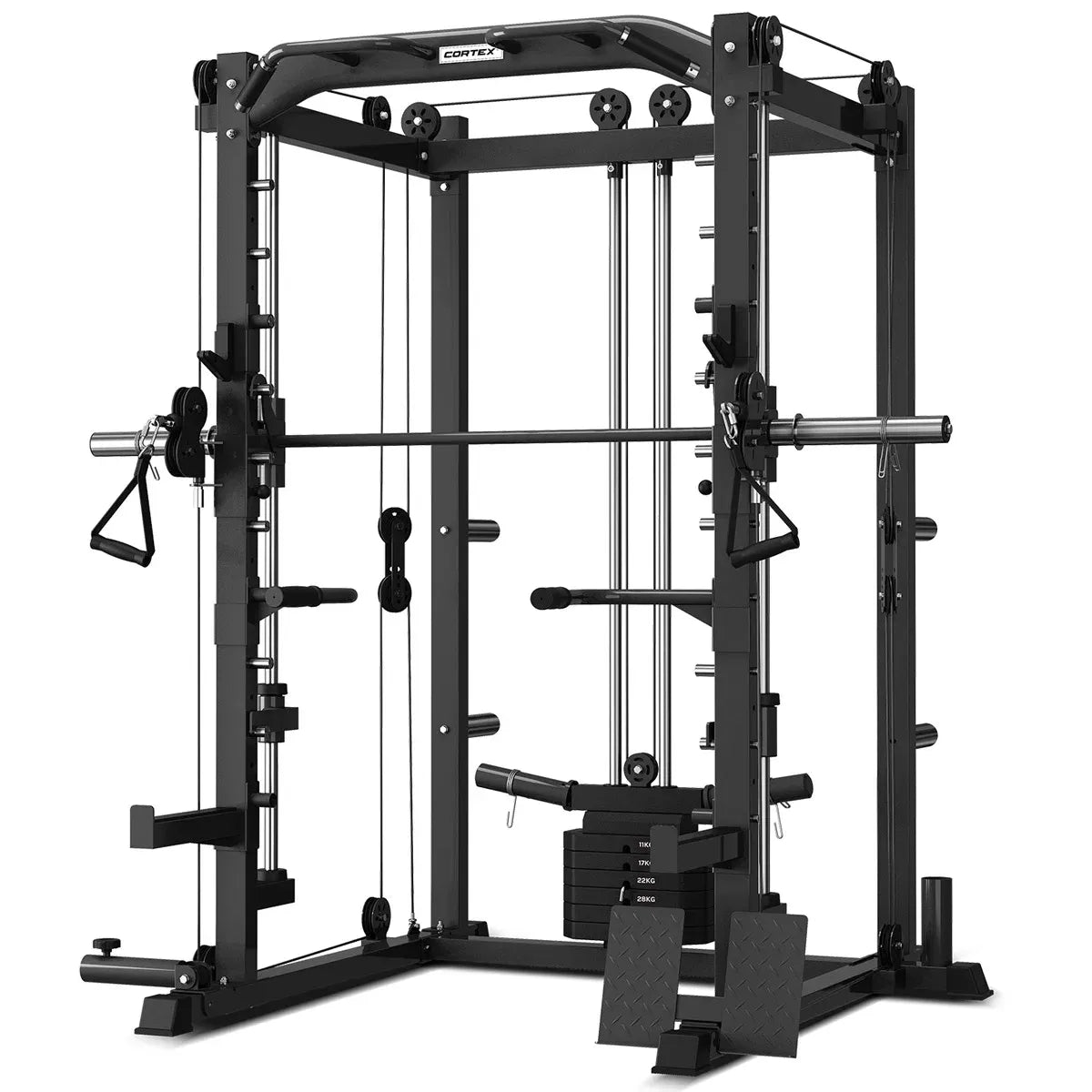

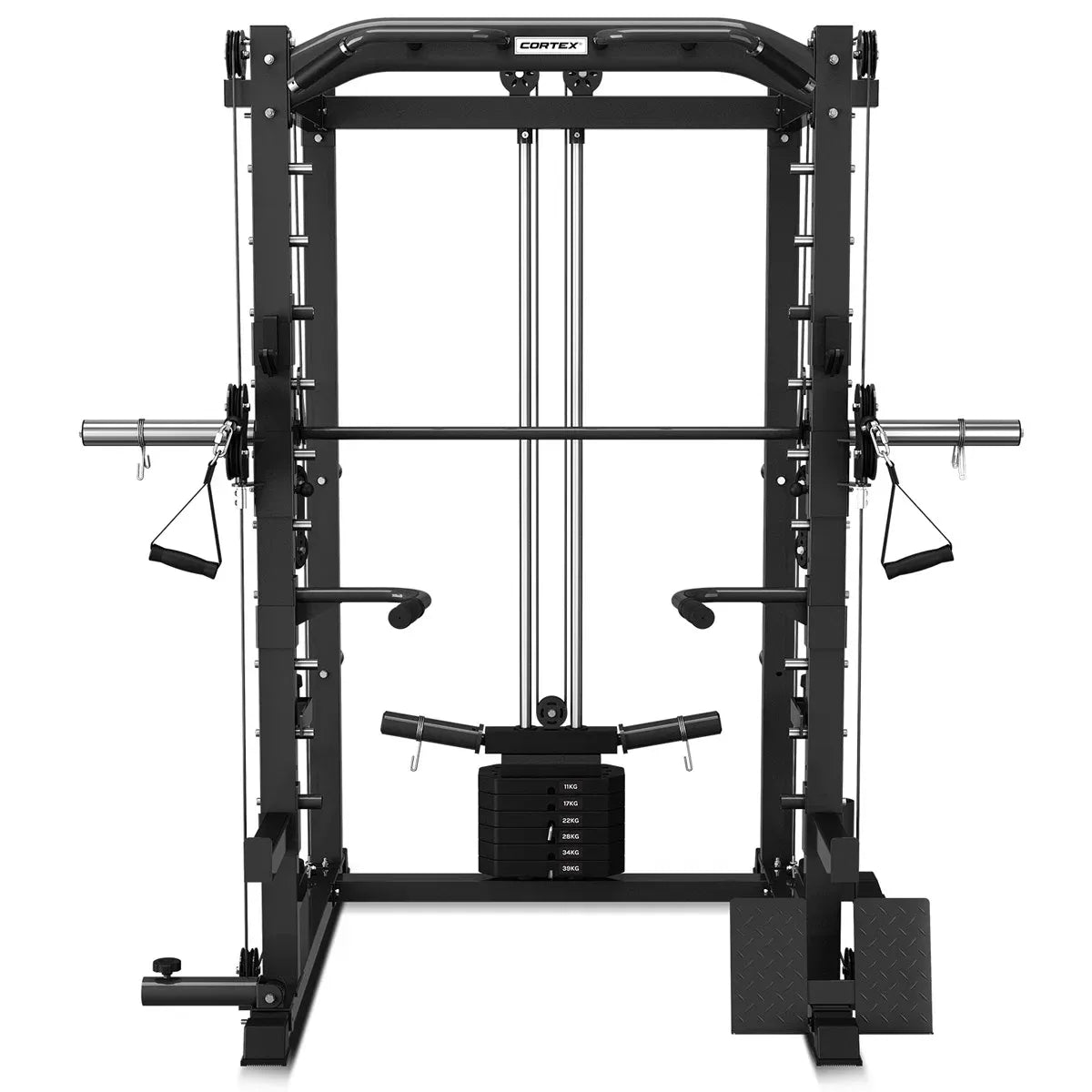

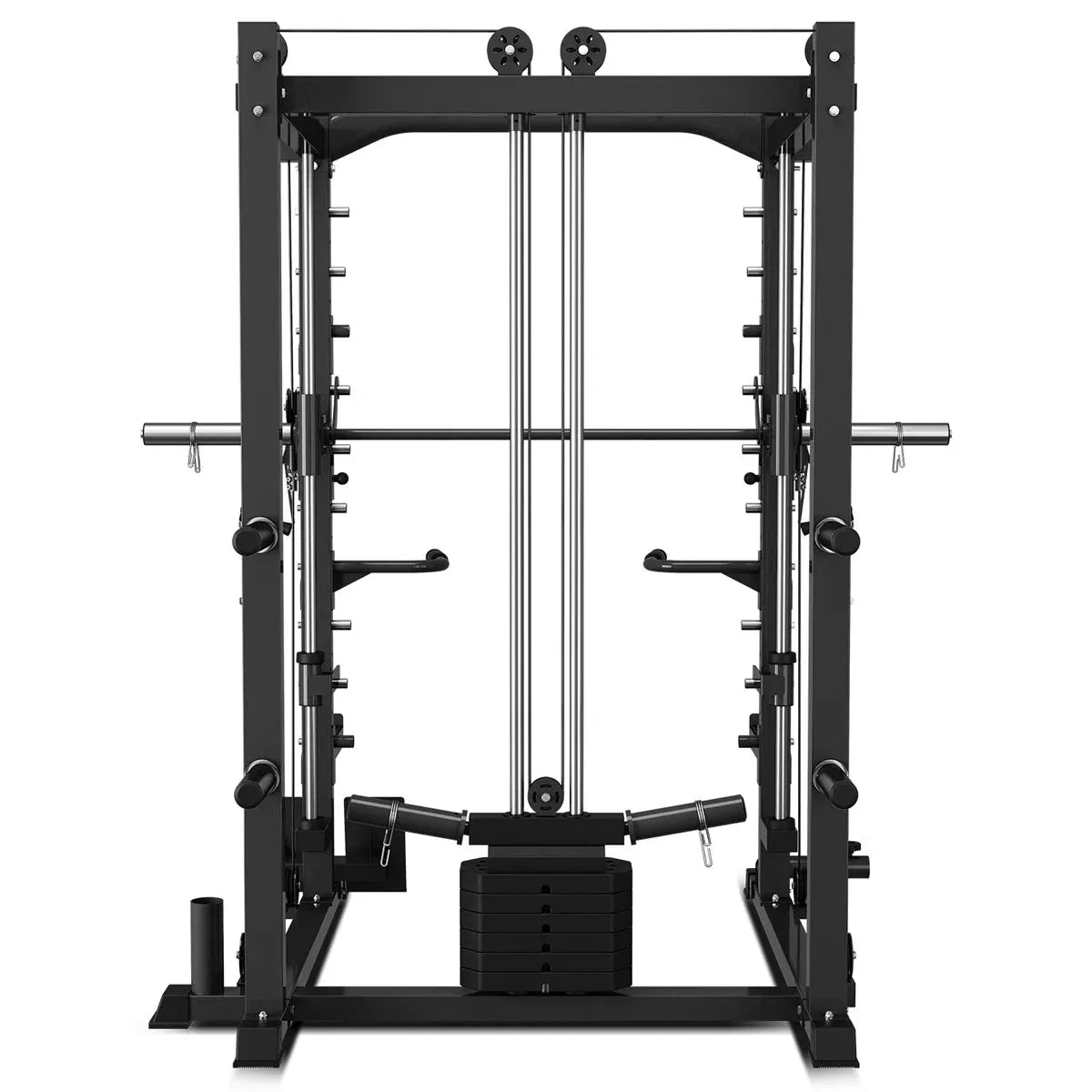

The CORTEX SM-20 is a complete home gym in one machine, combining a Half Rack, Smith Machine, Cable Machine, Chin-up Bar, Dip Station, and Weight Storage into a single compact footprint. The guided 203cm Smith barbell with Olympic 50mm intakes lets you train safely without a spotter, while the adjustable 45kg cable weight stack (plus additional plate intake) covers everything from lat pulldowns to cable rows and tricep pushdowns.
Two adjustable safety spotters with rubberised bearing surfaces and 10 height positions give you confidence to push your limits. The multi-grip double chin-up bar, height-adjustable dip bars, and barbell landmine attachment round out the exercise variety. Built from powder-coated 16-gauge steel with a 12-month parts replacement warranty.
Features
- 6-in-1: Smith Machine, Power Rack, Barbell Landmine, Chin-up, Dips, and Weight Storage
- 203cm guided Smith barbell with Olympic 50mm intakes (16kg bar weight)

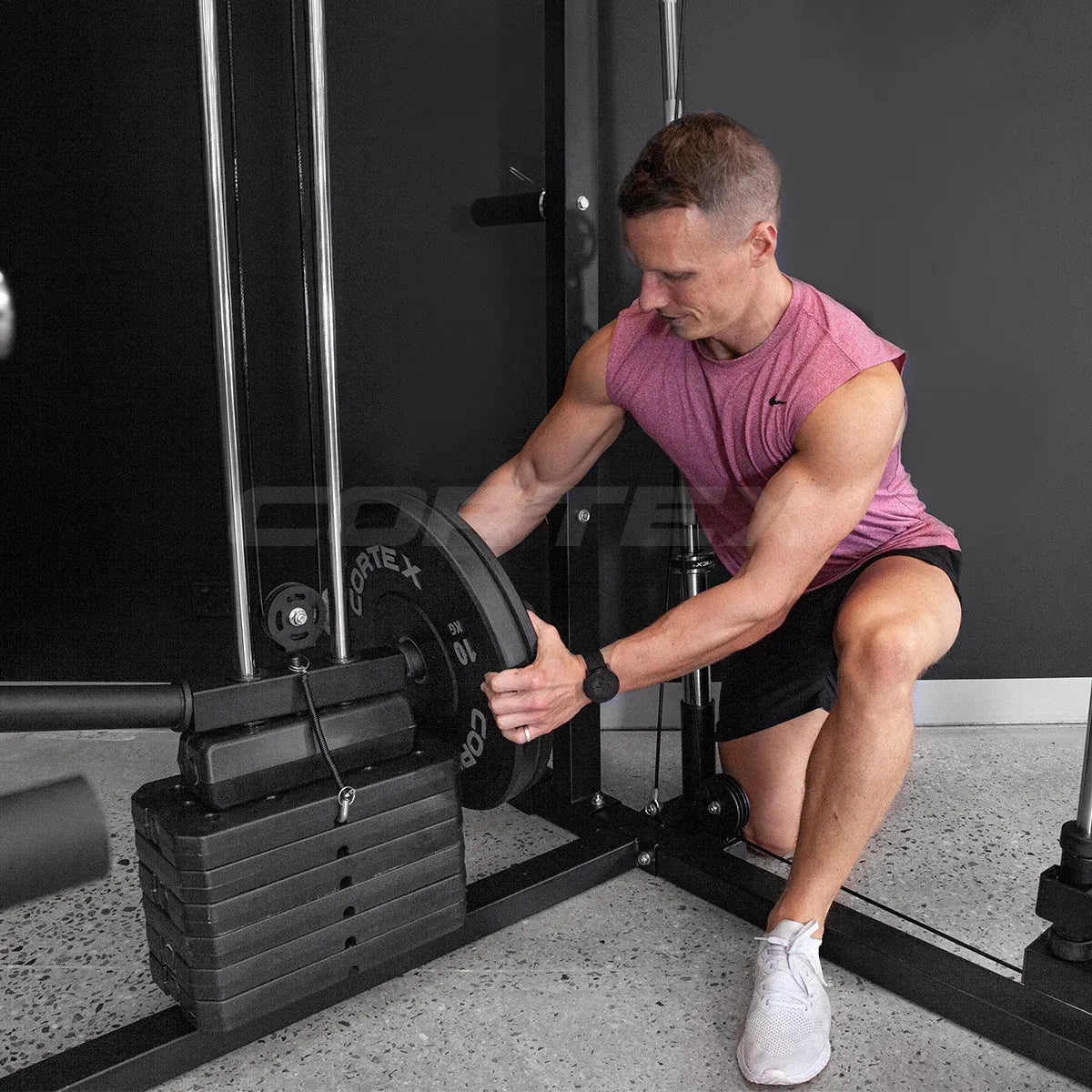

- 45kg adjustable cable weight stack with additional 25/50mm plate intake
- Cable ratio: 2:1 (unilateral 0.46, bilateral 0.92)
- 10 height positions for safety spotters and J-hooks
- Two adjustable safety spotters with rubberised bearing surface (max 200kg)

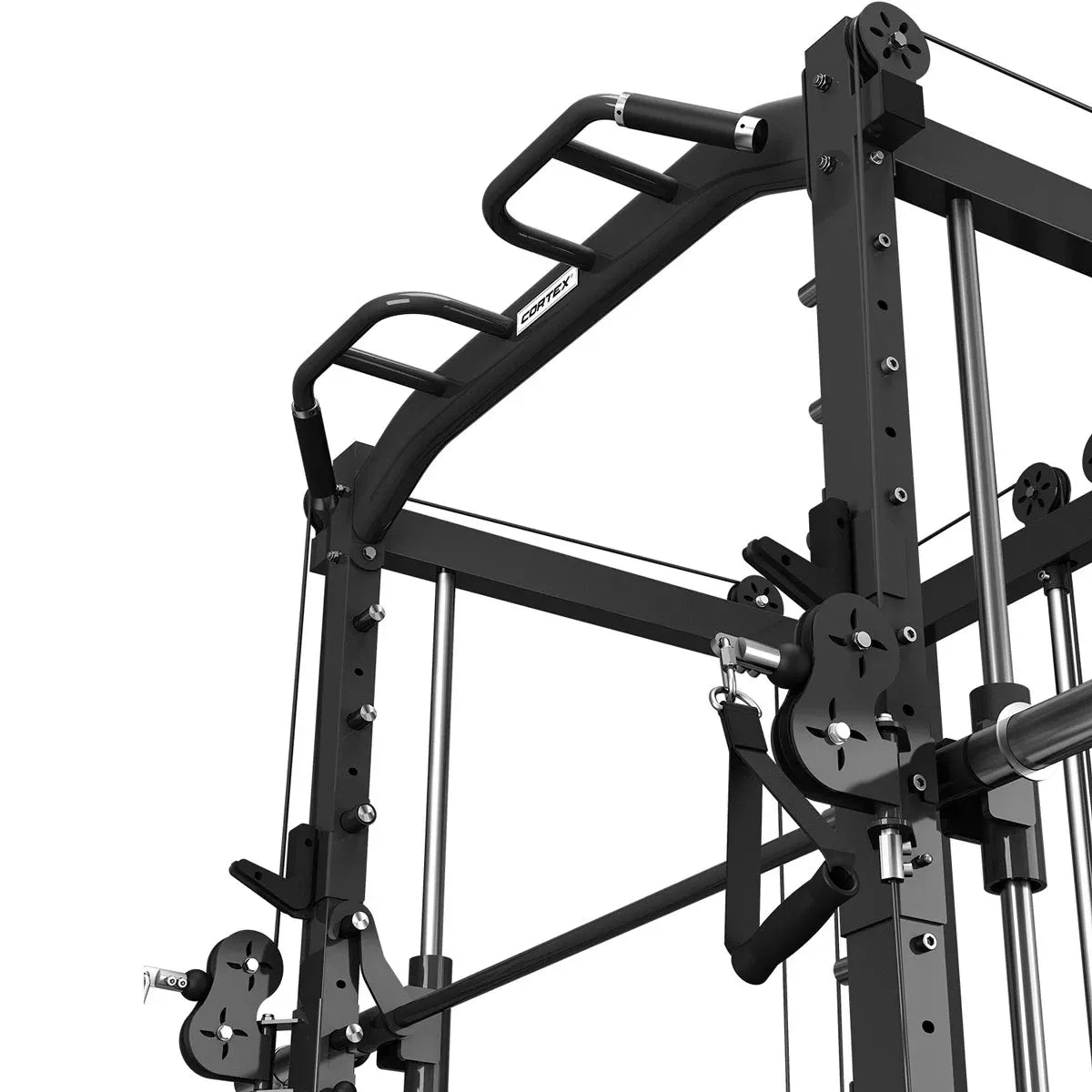

- Multi-grip double chin-up bar
- Height-adjustable and removable dip bars (max 120kg)

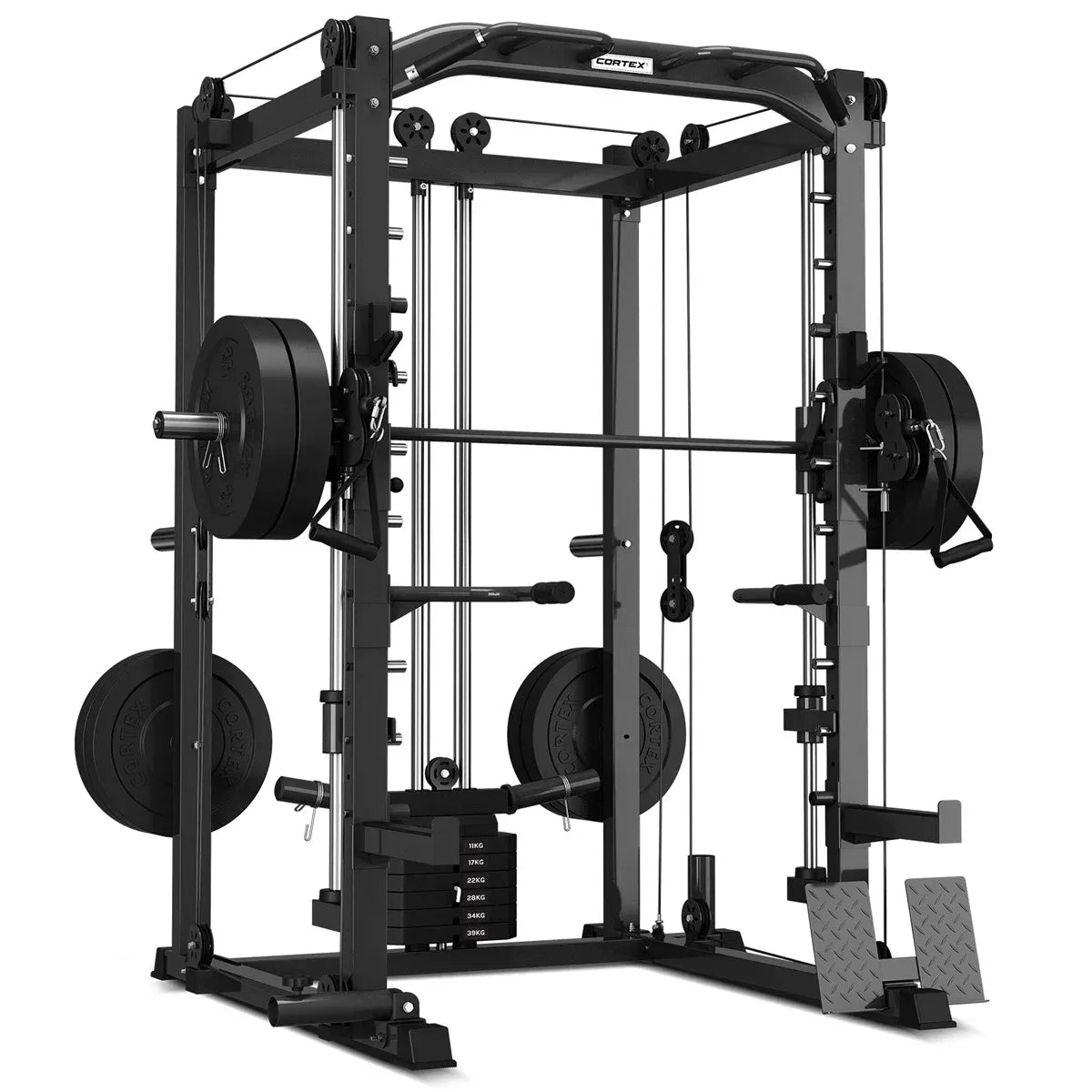

- 4 weight storage pegs (50mm plates, 50kg per post)

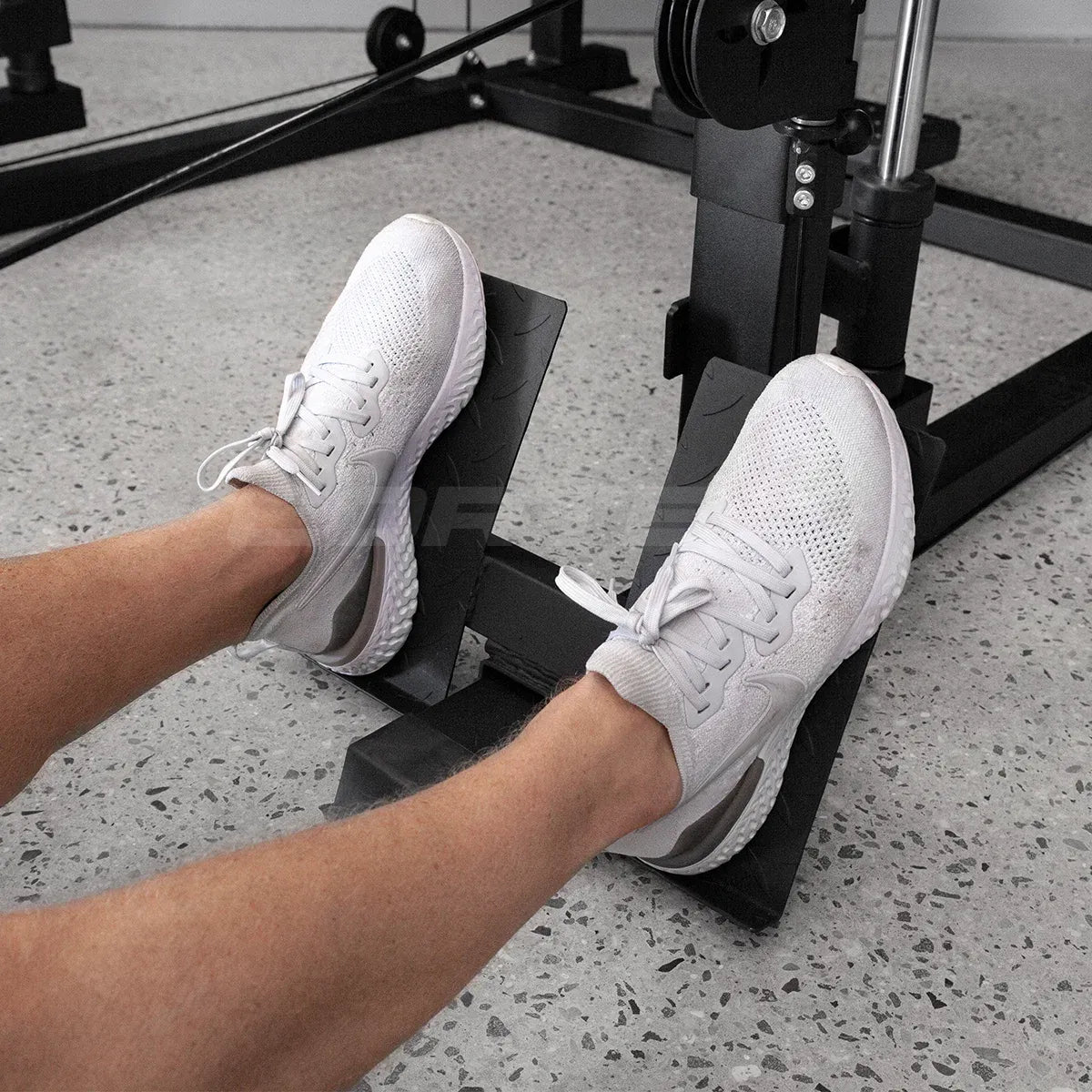

- Foldable foot plates
- Powder-coated 16-gauge steel construction
- 12-month parts replacement warranty
Load Capacities
-
Smith Barbell: 150kg
-
Safety Spotters: 200kg
-
J-Hooks: 180kg
-
Pull-up Bar: 200kg
-
Cable (per side): 100kg
-
Dip Handles: 120kg
-
Weight Disc Holder: 50kg
Specifications
-
Dimensions: 203cm x 170.4cm x 211cm (L x W x H)
-
Base Footprint: 160cm x 150cm
-
Net Weight: 181kg
-
Material: Powder-coated 16-gauge steel (1.5mm)
-
Weight Stack: 1 x top plate with rod (5.8kg), 1 x small plate (5kg), 6 x large plates (5.7kg each)
