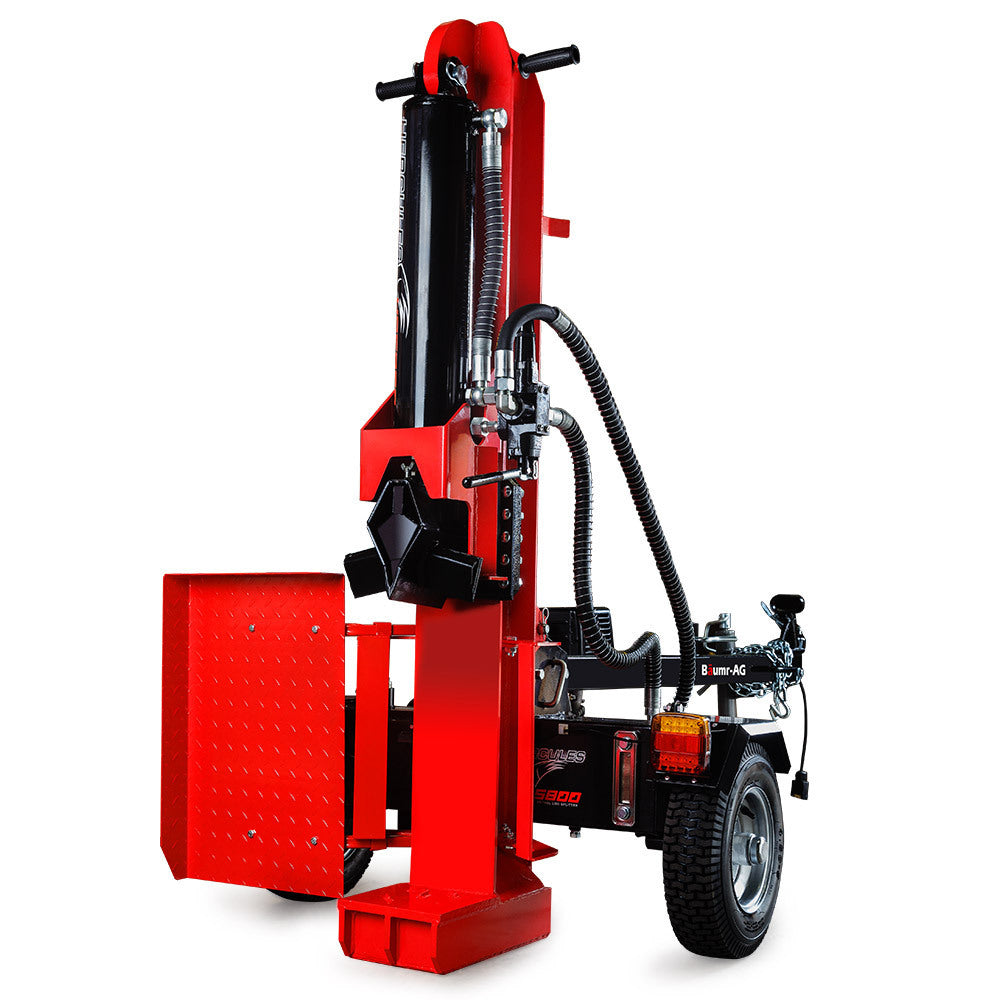

Baumr-AG 65 Tonne Petrol Hydraulic Wood Horizontal and Vertical Towed Log Splitter with Detachable 4-Way Wedge - HPS800

The Baumr-AG Hercules HPS800 MkII 65 Ton Log Splitter is the most powerful engine-driven splitter in the Baumr-AG range and one of the most in-demand petrol log splitters on the Australian market. With an 18HP OHV four-stroke engine and patented DirectDrive system, it makes light work of the toughest Australian hardwoods including Gum and Ironbark, splitting logs into quarters at the flick of a lever.

Designed for versatility, the HPS800 MkII splits in both horizontal and vertical positions so you can avoid lifting heavy logs. The removable 4-way wedge head splits 4 timbers from one log with no fixed bolts for quick interchange, and the convenient working table provides storage for multiple timbers before folding away for compact storage.

Built for Australian conditions, it features a proper 50mm Australian trailer coupling (not US type), premium all-terrain 16-inch extra-wide rubber tyres, and a heavy-duty fixed stripper to remove wood stuck to the wedge on the return cycle. An extra-large quick-release fold-away jockey wheel with integrated dual-action foot-activated brake prevents rolling or pivoting during use.

Hydraulic reliability is ensured by just two genuine Benmar hoses protected by Baumr-AG's patented HoseGuard spiral system, plus an oversized oil filter to guard against particle contamination, the number one cause of log splitter failure.

Key Features

• 65 ton tested splitting force (43 ton rated)
• 18HP OHV 4-stroke petrol engine with recoil start
• Patented DirectDrive for maximum efficiency and no vibration
• Splits horizontal and vertical, no lifting required
• Removable 4-way wedge head, no fixed bolts for quick interchange
• Removable working table for multi-timber storage
• Australian 50mm trailer coupling (non US type)
• Premium all-terrain 16-inch extra-wide rubber tyres
• Heavy-duty fixed stripper for stuck wood removal
• Genuine Benmar hydraulic hoses with HoseGuard protection
• Oversized oil filter for long-term reliability
• Splits timbers up to 650mm diameter

Specifications

• Brand: Baumr-AG
• Model: Hercules HPS800 MkII
• Engine: 18HP OHV 4-stroke
• Starting System: Recoil
• Power Source: Petrol
• Fuel Tank Capacity: 6.5L
• Fuel Type: Petrol
• Engine Oil Capacity: 1.1L
• Engine Oil Type: 10W-30 / 10W-40 / 15W-30 / 15W-40 non-synthetic (not included)
• Pump Type: 16GPM Two-Stage
• Hydraulic Hose: Benmar
• Hydraulic Oil Capacity: 22L
• Hydraulic Oil Type: 10WT AW32, ASLE H-150 or ISO32
• Max. Splitting Length: 550mm
• Max. Tested Splitting Force: 65 tons
• Rated Splitting Force: 43 tons
• Max. Ram Travel: 495mm
• Ram Diameter: 140mm
• Cycle Time: 18s
• Wheel Diameter: 8 inches pneumatic with bearing
• Jockey Wheel Diameter: 8 inches

In the Box

• 1 x Baumr-AG HPS800 MkII Log Splitter
• 1 x Container of hydraulic fluid
• Note: User Manual is accessible online

Size and Weight

• Product Dimensions (L x W x H): 223 x 110 x 171cm
• Carton Dimensions (L x W x H): 193 x 49 x 74cm
• Carton Weight: 330kg
